Refer to the instructions and videos provided below for proper cleaning and maintenance of your Xtool DTF printer. Adhering to these procedures is essential for achieving optimal performance, maintaining consistency, and extending the overall service life of the printer.
Cleaning Schedule -
=========
Caution -
Please find the related videos below -
Note: Use anhydrous ethanol only when cleaning the encoder strip.
💡 About Anhydrous Ethanol
Anhydrous ethanol—also known as absolute ethanol or pure ethanol—is a highly purified form of ethyl alcohol (Câ‚‚Hâ‚…OH) with a water content below 0.5%. Its name comes from the Greek word meaning “without water,” highlighting its moisture-free nature. Because it contains virtually no water, it is ideal for cleaning sensitive electronic components, helping prevent corrosion or short circuits.

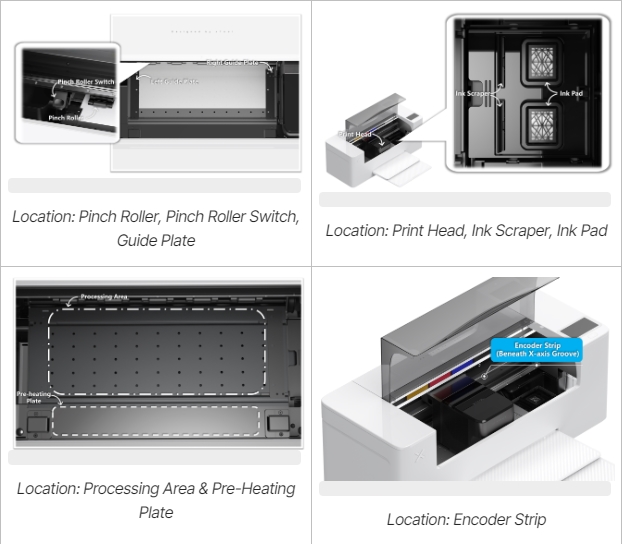

Cleaning Schedule -
- Printhead : Daily (normal cleaning) and Manual cleaning as needed
- InkPads / Capping Station : Weekly
- InkScraper / Wiper Blade : Weekly
- Encoder Strip : Once per month Or As needed- in case any printing issues such as double printing effects arise.
- Pre-heating and Processing-Tray : Once per month Or As needed - for too much ink residues on the tray.
- Film Feeding (Pinch rollers) Rollers and Guides - Once per month Or As needed - for excess of adhesive powder residues on it.
=========
Caution -
- While performing Manual head cleaning, It is highly recommended to use separate cotton swabs and syringes for each color.
- Kindly use a separate and clean lint-free cloth for each waste inkpads + wiper blades, on the capping station to avoid cross-contamination.
- Use only anhydrous ethanol for cleaning the Encoder Strip. Gently wipe in Uni-direction
- Allow parts to dry well and avoid any Liquid Spills during cleaning.
Please find the related videos below -
Note: Use anhydrous ethanol only when cleaning the encoder strip.
💡 About Anhydrous Ethanol
Anhydrous ethanol—also known as absolute ethanol or pure ethanol—is a highly purified form of ethyl alcohol (Câ‚‚Hâ‚…OH) with a water content below 0.5%. Its name comes from the Greek word meaning “without water,” highlighting its moisture-free nature. Because it contains virtually no water, it is ideal for cleaning sensitive electronic components, helping prevent corrosion or short circuits.
